Width x Depth x Canopy Height

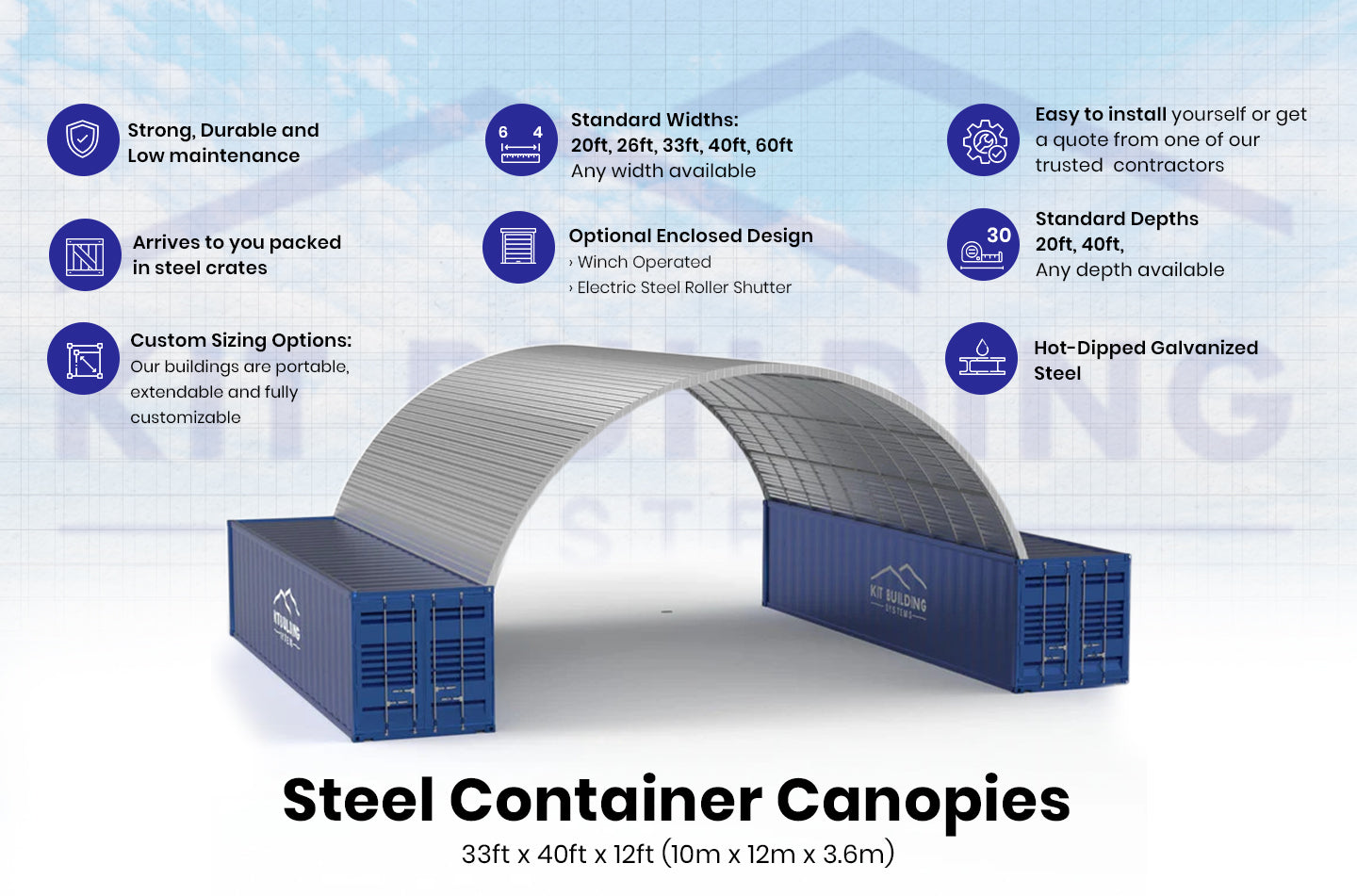

Transform your large-scale storage capabilities with the Kit Buildings Steel Container Canopy 33ft x 40ft x 12ft, expertly engineered to provide reliable protection for extensive warehousing and industrial operations. This substantial shelter delivers professional-grade performance with practical design features optimized for demanding commercial applications.

Premium Steel Construction Standards Built with hot-dip galvanized steel tubing, this canopy framework undergoes an intensive galvanization process that creates exceptional corrosion protection. The single truss design is specifically engineered to handle the 40ft span efficiently while providing superior structural integrity across varying weather conditions and load requirements.

The 0.7mm box section steel paneling delivers comprehensive weather protection with enhanced impact resistance. This heavy-duty steel covering incorporates fire-retardant properties and provides complete weatherproofing while maintaining structural rigidity, ensuring reliable protection for staff and stored equipment from harmful UV rays and environmental damage.

Intelligent Design Configuration The impressive 12ft height clearance accommodates tall machinery, large vehicles, and multi-level storage systems, while the 33ft x 40ft footprint provides optimal coverage for dual container arrangements. The clean-span design eliminates internal supports, maximizing usable space and ensuring unrestricted access for loading operations and equipment movement.

This canopy is specifically designed for mounting securely on top of two standard shipping containers, creating an expanded storage facility that maximizes the utility of existing container investments.

Available In A Variety of Sizes We have worked with a variety of different customers over the years, and in that time we have tried to make sure that our products will accommodate different organizations' and individuals' needs. You can contact us at the time of enquiring with the dimensions you require, and we will be able to manufacture bespoke container canopies tailored to your specific operational requirements.

This substantial model provides an excellent foundation for customization, with our manufacturing capabilities enabling precise modifications to match your site constraints and workflow needs.

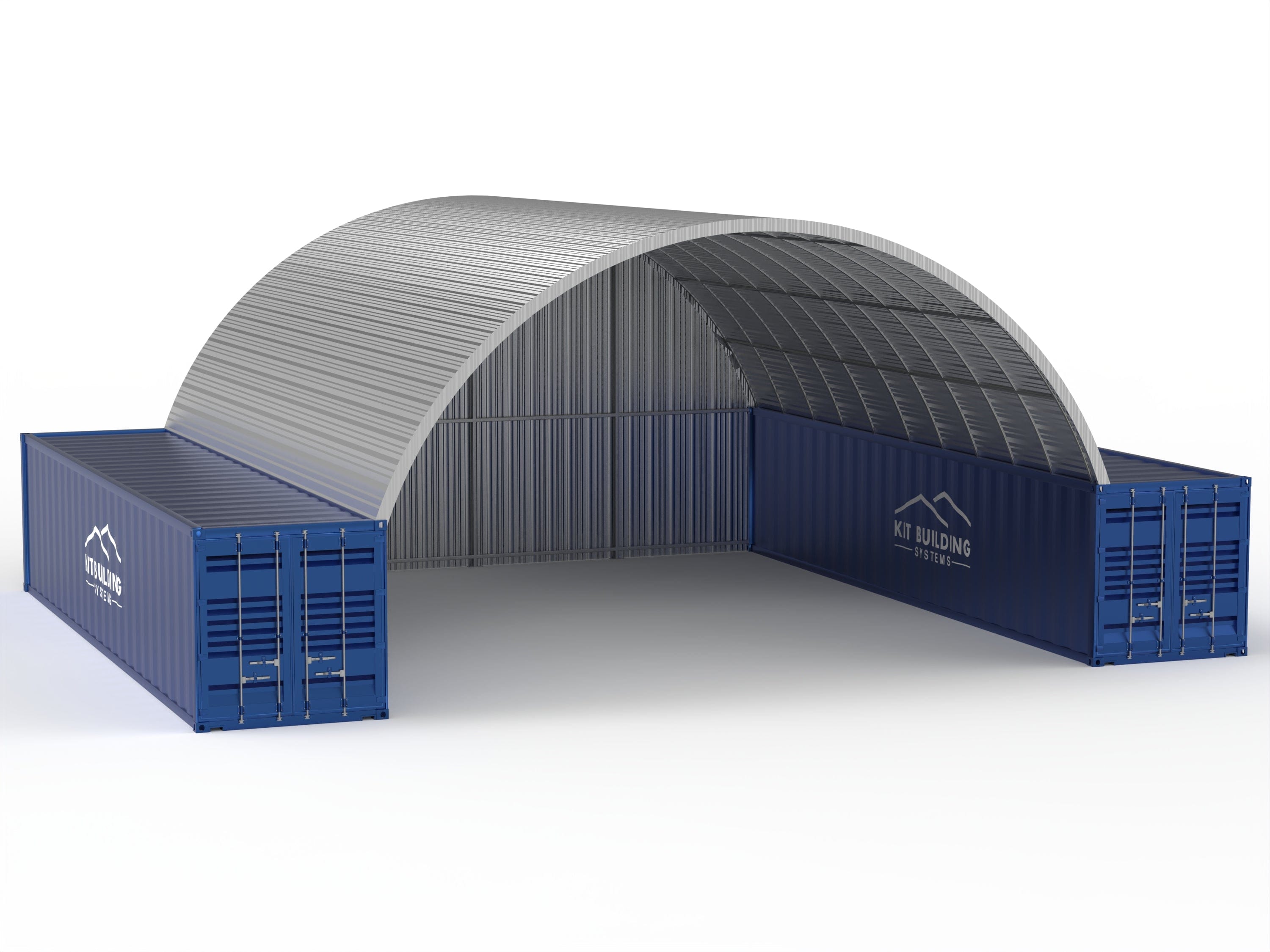

Front and Back Panel Options As well as a measure of customization when it comes to the size of your container canopy, you also have the choice between having front and back panels or not. Many of our customers prefer to invest in a shelter that allows for easy access at the front or back, maintaining open workflow for loading and operational activities.

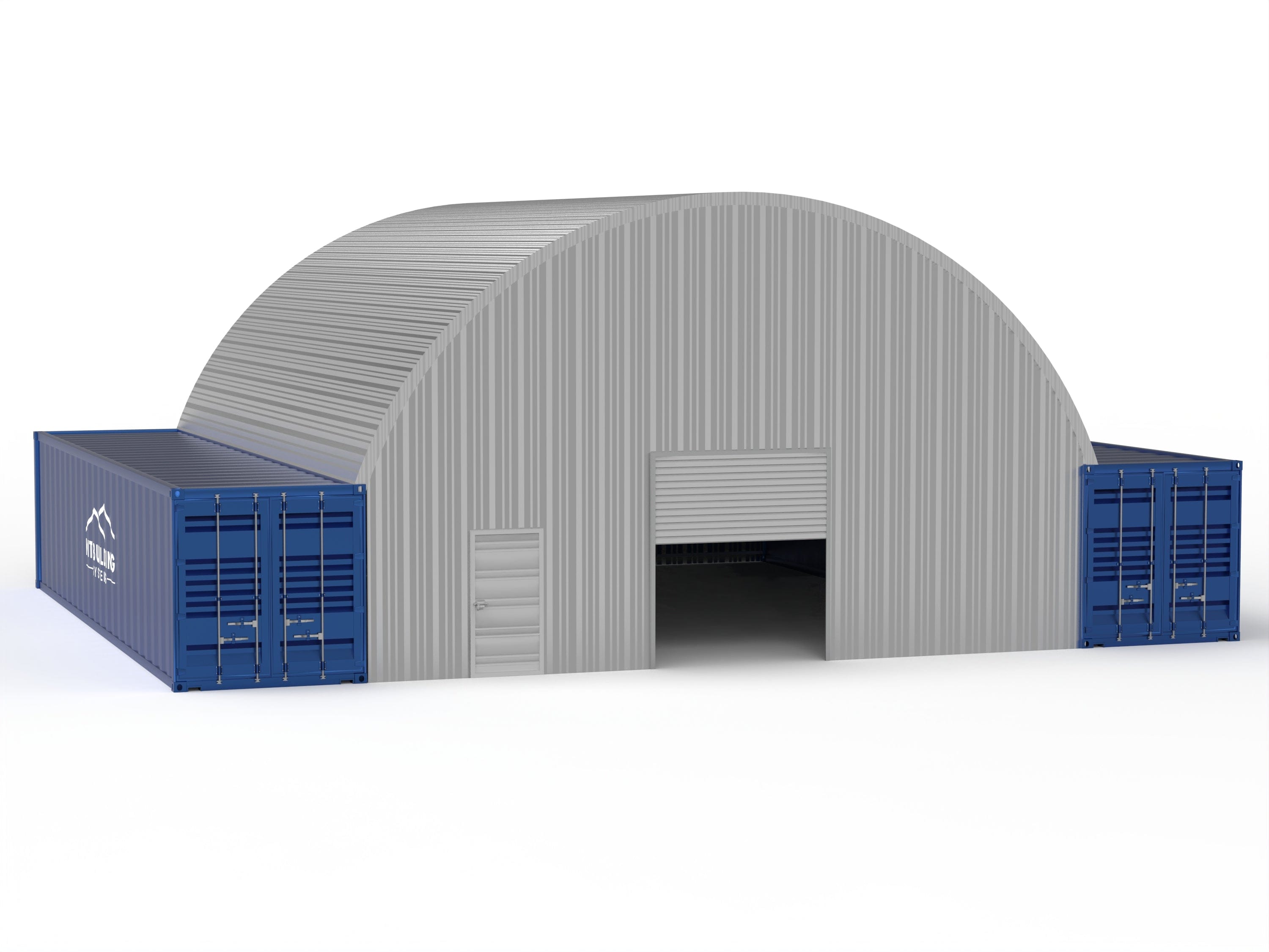

However, if you are looking to create a secure storage space with enhanced weather protection, you may wish to invest in front and back panel components as well. Optional enclosed designs include closed back panels and front panels featuring electric steel roller shutters for maximum security and controlled access.

Easy to Install We want to provide the best customer experience from the point of ordering a container canopy shelter to when it arrives at your chosen delivery destination. We have ensured that these shelters are easy to install, with comprehensive instructions clearly laid out that make erecting these incredibly strong and weather-resistant structures straightforward.

Our step-by-step installation guides include detailed diagrams, photographic references, and complete component lists to ensure successful assembly. The precision-engineered components and modular design minimize installation complexity while maintaining structural integrity.

If, due to time and manpower issues, you don't want to do it yourself, let us know at the time of ordering and we can arrange for our experienced installation team to visit your premises and professionally erect and install it for you.

Anchoring Systems for Mounting We have included anchoring systems specifically designed to streamline the installation process. These systems enable easy and secure mounting on ISO standard containers, high cube containers, steel beams, or concrete blocks. The standard anchoring systems utilize flat base plates for welding to containers, ensuring maximum stability and safety during setup. We can provide a clamp anchoring system for an additional cost for applications requiring non-permanent installation.

We supply comprehensive written installation instructions with every order, complemented by detailed video guides when available. Our expert team is always on hand to provide guidance and answer any questions you may have throughout the installation process.

Drawings

Technical specification

Delivery

Finance options

Durable by design, backed by warranty.

Fabric design to last

UV-resistant fabric made from tough 610g/m2 PVC for long term performance.

Durable galvanized steel frame

Hot-dip galvanized for strenght and long lasting corrosion protection.

Comprehensive warranties

Backed by warranties you can rely on. 20 years on steel frames, 5 years on PVC fabric, and 6 years on panel systems.

Installation made easy

Self-installProfessional install

Watch the installation in action

See how simple it is to assemble your double truss PVC building - from unpacking the kit to raising the final arch...

Step-by-step instructions

Each building kit comes with a full manual to help you assemble it.

Built by hundreds of customers

From farms to vehicle storage yards; our customers are successfully building their own structures across the UK an...

Frequently Asked Questions

What is a 20ft × 40ft × 6.5ft steel container canopy and what space does it create?

Does the 20×40×6.5 container canopy fit standard and High-Cube containers?

What is the 20×40 canopy made from?

What end-wall and door options are available on the 20×40 container canopy?

How is the 20×40 canopy fixed to the containers—do I need foundations?

Is the 20×40 container canopy DIY-friendly to install?

What are typical uses for a 6m × 12m container canopy?

Do I need planning permission for a 20×40 container canopy?

More buildings

Fabric Storage Buildings | Double Truss

From £5,824

Dome Fabric Storage Buildings

From £3,574

Container Canopies - 26ft x 40ft x 10ft (8m x 12m x 3m)

From £1,947

Steel Buildings

From £10,419

Featured resources

project portfolio

How Livestock Shelters Are Revolutionising Farm Efficiency in the UK

What if the future of farm efficiency isn't in a lab or at a computer but under a modern steel-framed shelter? In the...

project portfolio

Why Now Is the Right Time to Invest in Agricultural Buildings

Across the UK, a small but strong change is happening in how landowners and farmers view their infrastructure. It’s n...

project portfolio

Exploring the Benefits of Steel Buildings in Canada

Steel is one material that stands tall quite literally and figuratively. Across the vast area of canada, the climate ...

Quick Links

• Products
• Customer Stories
• Company
• Building Configurator
• Contact

Information

• About Us
• Service & Installation
• Our Buildings
• FAQs
• Refund Policy
• Privacy Policy

About

We believe that there is an ideal space solution for everyone. For every industry, application , occasion and person.

Call us today on

01375 258199

© 2025 - Kit Buildings

We provide detailed design drawings for every project. Our engineers carefully craft each plan to meet your exact requirements, with efficiency and structural integrity at the forefront of our design process

• Dimensions: 33ft x 40ft x 12ft (10m x 12m x 3.6m)
• Coverage Area: 1,320 square feet (122.6m²)
• Frame: Hot-dip galvanized steel tubing, single truss design
• Paneling: 0.7mm box section steel paneling with fire-retardant properties
• Mounting: Flat steel base plates for drilling/welding, optional clamp system available
• Height Clearance: 12ft accommodates tall equipment and vehicles
• Installation: Complete kit with steel base plates and galvanized fixings included
• Delivery: 2-3 days for standard models, 6-12 weeks for custom configurations
• Load Requirements: Forklift with 1000kg capacity required for unloading

Standard Delivery Timeline:

1. In-Stock Items: 2-3 business days for standard configurations
2. Custom Orders: 4-14 weeks depending on specification requirements
3. Express Service: Expedited delivery available for urgent projects (contact for pricing)

Delivery Coverage:

1. UK Mainland: Comprehensive coverage with dedicated logistics network
2. Scotland and Wales: Standard delivery service to most locations
3. Northern Ireland: Available with extended delivery timeframes
4. International: Export services available (contact for specific requirements)

Shipping and Logistics:

1. Professional logistics partners ensure safe handling and on-time delivery
2. All components carefully packaged to prevent transit damage
3. Specialized transport for oversized components when required

To unload the shelter upon delivery, a forklift with a minimum load capacity of 1000 kg is required. This ensures the safe and efficient handling of the shipment. In cases where a forklift is not available, alternative arrangements can be made, though please note that additional charges may apply for such accommodations.
