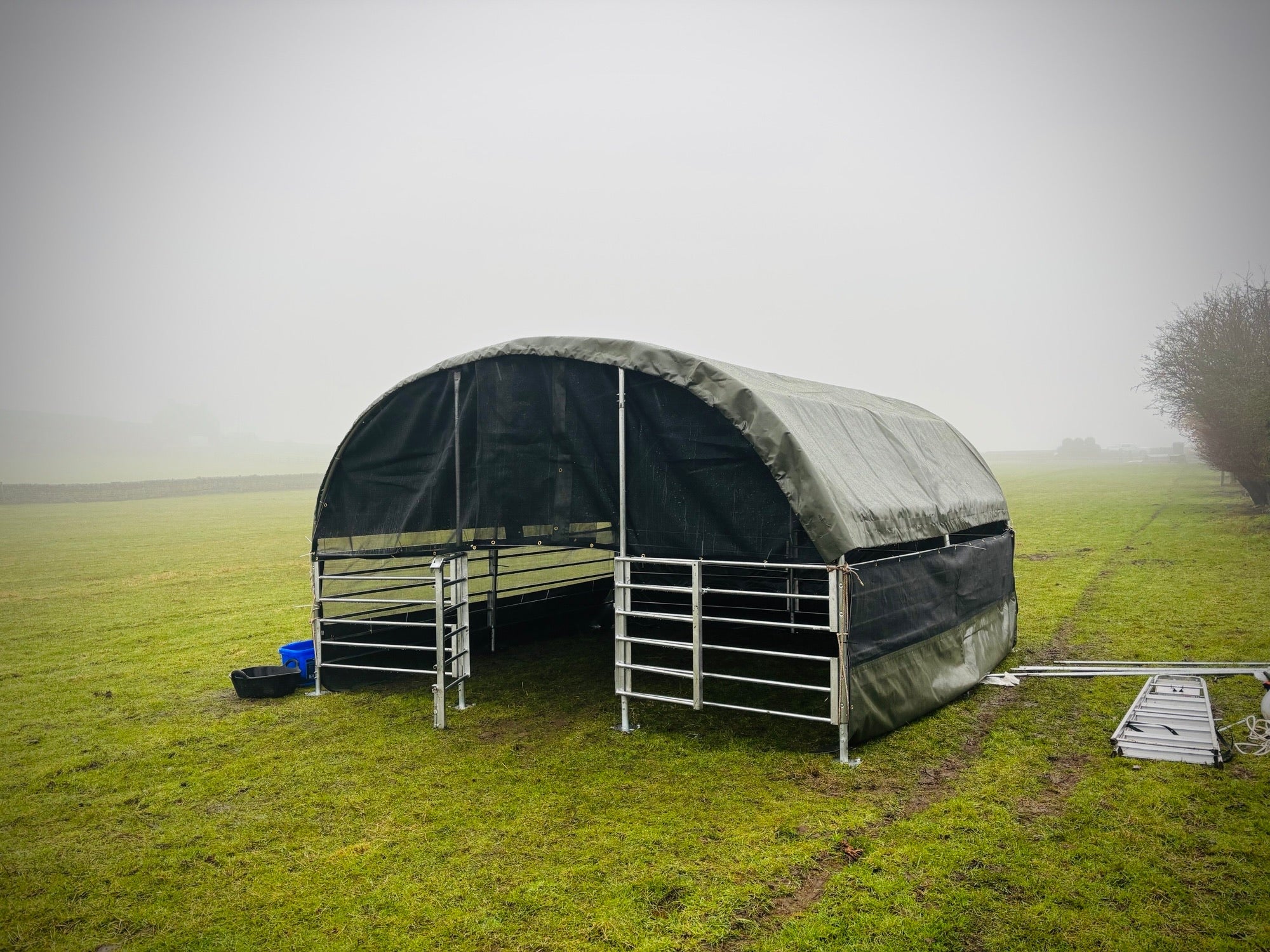

Modified Agricultural Shelter Solves Multi-Purpose Storage Challenges

A rural property owner required versatile storage for hay bales and seasoning firewood. By customizing a standard Enclosed Livestock Shelter with increased height, they created an ideal multi-purpose agricultural building that addresses storage needs while providing future flexibility.

The Challenge

Managing agricultural storage presents several interconnected problems:

Hay Storage Requirements: Hay bales require substantial vertical clearance for proper stacking and air circulation. Standard height shelters limit stacking capacity, forcing inefficient storage or multiple structures. Poor hay storage results in mold, spoilage, and reduced nutritional value.

Firewood Seasoning Needs: Properly seasoning firewood requires 12-24 months in covered, well-ventilated space. Wood exposed to rain develops mold, retains moisture, and burns inefficiently. Effective seasoning requires vertical stacking space and weather protection.

Weather Vulnerability: Both hay and wood suffer dramatically from weather exposure. Rain quickly ruins hay's nutritional content and makes firewood unusable.

Space Efficiency: Limited budgets and land mean storage solutions must maximize vertical space. Standard building heights often fail to accommodate efficient stacking.

Cost Constraints: Traditional agricultural buildings with sufficient height command premium prices beyond many property owners' budgets.

The Solution

Customized Livestock Shelter Specifications:

1. Base Model: Enclosed Livestock Shelter

2. Standard Height: 2.4 metres (8 feet)

3. Customized Height: Increased to 3.5-4 metres (11.5-13 feet)

4. Width: 4 metres (13 feet)

5. Length: 8-12 metres (26-40 feet)

6. Total covered area: 32-48 square metres

Key Features:

1. Increased Vertical Clearance: Custom height enabling efficient multi-layer stacking of hay bales and firewood

2. Galvanized Steel Framework: Hot-dip galvanized structure providing robust support and corrosion resistance

3. Heavy-Duty PVC Cover: 610g/m² PVC delivering complete weather protection with ventilation

4. Three-Sided Enclosed Design: Protection from weather while maintaining airflow

5. Open Front Access: Easy loading and unloading with tractors or manual handling

Results and BenefitsOptimized Hay Storage

The increased height enables efficient vertical stacking of multiple bale layers. Small square bales can be stacked 3-4 layers high, while round bales can be double-stacked.

Storage Capacity: An 8m x 4m shelter with 3.5m height can accommodate:

1. 120-150 small square bales (stacked 3-4 high)

2. 12-16 round bales (double-stacked)

3. Significantly more than standard 2.4m height allowing only single-layer storage

Effective Firewood Seasoning

The shelter provides ideal seasoning conditions:

1. Complete protection from rain and snow preventing re-wetting

2. Open front allowing crucial air circulation for moisture evaporation

3. Vertical stacking space for organized inventory management

4. Ground clearance preventing moisture wicking from soil

5. Sufficient height for 1.5-2 metre stacked woodpiles

Weather Protection Performance

Through all seasons, reliable protection includes:

1. Complete rain exclusion preventing spoilage

2. Snow shedding from pitched roof

3. Wind protection from three enclosed sides

4. UV protection preventing material degradation

5. Temperature moderation reducing extreme exposure

Cost-Effective Solution

The customized shelter delivered exceptional value:

1. 60-70% cost saving versus purpose-built agricultural building

2. Height modification added minimal cost to base unit (£200-400)

3. DIY installation option eliminated labor costs

4. No planning permission required in most agricultural settings

5. Rapid deployment preventing weather-related losses

Space Efficiency

The increased height transformed storage capacity:

1. 50-100% increase in volumetric storage versus standard height

2. Reduced land footprint requirement

3. Efficient site utilization leaving more open land available

4. Organized vertical storage improving material management

Multi-Purpose Flexibility

The shelter provides valuable versatility:

1. Current use for hay and wood storage

2. Future conversion to livestock housing if needed

3. Potential workshop or equipment storage

4. Seasonal use variations

5. Adaptable layout without fixed structures

Technical Specifications

Modified Structural Framework:

1. Material: Hot-dip galvanized steel CHS tubing

2. Standard tube: Ø40mm x 1.5mm wall thickness

3. Additional bracing for increased height

4. Engineering: Wind loading calculations for enhanced height

5. Warranty: 20-year structural warranty

Heavy-Duty Fabric Cover:

1. Material: 610g/m² industrial PVC tarpaulin

2. Properties: UV-stabilized, waterproof, tear-resistant

3. Color: Agricultural green

4. Warranty: 5-year material warranty

Foundation Requirements:

1. Ground screws or concrete anchor points

2. Calculated spacing for increased wind loading

3. Appropriate depth for soil conditions and height

4. Site grading ensuring water drainage

Why Customization Works

Modest Cost Premium: Height customization adds relatively small cost compared to substantial increase in storage capacity.

Maintained Simplicity: Despite customization, structure retains straightforward assembly. Additional height doesn't significantly complicate DIY installation.

Engineering Proven: Standard designs incorporate conservative margins. Height increases within reasonable limits maintain structural integrity.

Future Value: Custom specifications add long-term value beyond immediate storage needs, remaining adaptable for various applications.

Applications Beyond Hay and Wood

Customized height shelters excel for:

1. Various hay and fodder storage (square bales, round bales, haylage)

2. Wood storage and processing (firewood, timber, fencing materials)

3. Tall equipment storage (hay elevators, augers, trailers)

4. Livestock housing with comfortable headroom

5. Seasonal storage for various farm materials

Investment Analysis

Capital Cost:

1. Base 8m x 4m shelter: £1,140-1,540

2. Height modification premium: £200-400

3. Total investment: £1,340-1,940

4. Equivalent traditional building: £4,000-8,000+

5. Cost saving: 60-75%

Material Protection Value:

1. Hay spoilage prevention: £50-150 per tonne protected

2. Firewood quality maintenance: £30-50 per cubic metre

3. Extended material lifespan: 2-3x longer usable life

4. Reduced replacement costs

Payback Period: Typically 2-4 years through prevented losses and improved material quality.

Conclusion

The customized height Enclosed Livestock Shelter demonstrates how thoughtful product adaptation delivers exceptional value for agricultural storage. This project proves that standard products can be intelligently modified to address specific challenges without compromising quality or affordability.

For property owners and farmers requiring weather-protected storage with vertical capacity, this case study shows how custom height specifications transform basic shelters into highly functional, cost-effective solutions.
